JAMA - BIR4 V2 Infrared barrier without reflector for CANON and PENTAX (RS-60E3)

Ref : BIR4RS60E3

Available

> Manual Instructions BIR4

Descriptive :

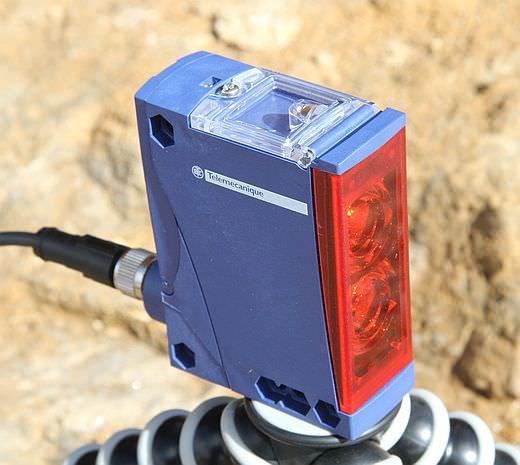

JAMA - BIR4 V2 Infrared barrier without reflector for CANON and PENTAX (RS-60E3):

NEW FEATURE! -->

Possibility to choose a BURST trigger, when the animal remains positioned in front of the beam, or to keep a single trigger by beam cut, using a new micro switch placed inside the barrier!

This infrared barrier can trigger a camera or flash (bat in flight) on the beam cut that works without reflector or transmitter side.

BIR4 The module is equipped with a transceiver incorporated.

This barrier will allow the device to trigger on a specific area such as a tree branch, a cliff perch...

This must be supplied with a minimum 12V battery. The battery is not included. You trouverer in the "Power Extension" section under infrared Barriere and trap photo: http://www.jama.fr/boutique/fr/prise-de-vue/telecommande/alimentation-electrique/batterie-12v-2-8-ah-323

A small JAMA package included the device allows the interface between the camera and the barrier from the industrial world. Some adjustments are necessary, just open the small transparent hatch on top of the module with a screwdriver, and adjust the sensitivity of the detector.

Warning: In case of rain or snow, this module may trigger unnecessary.

The range of this barrier is approximately 6 feets.

Consumption is about 0.02A or with a battery backup of 2.8A 140h (5 days and 10 h).

The module is completely sealed so the 2 screws closing valves are closed.

Weight : 160.00 g

List of compatible cameras :

CANON RS-60E3 (Jack 2.5) : EOS R, EOS R6, EOS R6 MkII EOS R7, EOS RP, EOS R10, 1000D, 1100D, 1200D, 1300D, 1500D, 2000D, 100D, 200D, 250D, 300D, 350D, 400D, 450D, 500D, 550D, 600D, 60D, 60Da, 650D, 700D, 750D, 760D, 850D, 70D, 77D, 80D, 90D, 8000D, Kiss Digital, Kiss Digital F, Kiss Digital N, Kiss Digital X, Kiss X2, Kiss X3, Kiss X4, Kiss X5, Kiss X50, Kiss X70, Kiss X6i, Kiss X7i, Kiss X8i, G1X, G1X II, G1X III, G3X, G5X, G10, G11, G12, G15, G16, SX50 HS, SX60 HS, SX70 HS, Digital Rebel, Rebel SL1, Rebel SL2, Rebel SL3, Rebel T1i, Rebel T2i, Rebel T3, Rebel T3i, Rebel T4i, Rebel T5, Rebel T5i, Rebel T6, Rebel T6i, Rebel T6s, Rebel T7, Rebel T7i, Rebel T8i, Rebel XS, Rebel XSi, Rebel XT, Rebel XTi, EOS M5, EOS M6, EOS M6 MK II, Olympus OM-1
OLYMPUS OM-1, RM-CB2 : OM-D E-M1 MK II, OM-D E-M1 MK III, OM-D E-M1X, OM-D E-M5 MK III
SAMSUNG : GX-1L, GX-1S, GX-20, NX-100, NX-11, NX-10, NX-5
CONTAX : 645, N, N1, NX, N Digital
PENTAX K-3 III, CS-205 : 645D, 645Z, ist D, ist DL, ist DL2, ist DS, ist DS2, K1, K1 II, K-3, K3 II, K-30, K-5, K-5 II, K-5 IIs, K-5 IIt, K-50, K-500, K-7, K10 Grand Prix, K100D, K100D Super, K10D, K110D, K200D, K20D, MZ-6, MZ-L, ZX-L

Remarks :

Compatible with wired remote RS-60E3

275.00 € VAT included Add to Cart
