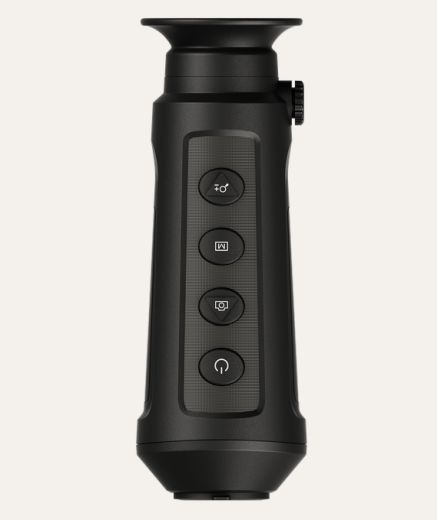

HIKMICRO - LYNX S LE10S thermal vision monocular

Ref : HIKLE10S

Available

Descriptive :

HIKMICRO - LYNX S LE10S thermal vision monocular:

The HIKMICRO LYNX S LE10S thermal monocular is equipped with a 256 × 192 detector and an 800 × 600 OLED display.

It supports observation functions, Wi-Fi point, etc.

The high-sensitivity built-in thermal detector gives you clear images in harsh conditions.

Main Features :

     High sensitivity thermal module with 256 × 192 resolution
     NETD < 35 mK (@25°C, F# = 1.0)
     Image processing technology: Adaptive AGC, DDE, 3D DNR
     0.32-inch OLED display with 800 × 600 resolution
     Built-in rechargeable lithium battery
     Up to 8 hours of continuous operation

Guarantee :

     Battery: 1 year
     Product: 3 years
     Thermal sensor: 10 years

DETAILED FEATURES:

Thermal module

     Image sensor: Vanadium oxide (Vox) uncooled focal plane arrays
     Resolution: 256 × 192
     Frame rate: 50 Hz
     Interval between pixels: 12 μm
     Response waveband: 8 μm to 14 μm
     NETD: < 35 mK (25°C, F# = 1.0)
     Lens (focal length): 9.7 mm, F1.0
     Detection range: 500 m
     Focus mode: Free focus
     Minimum focusing distance: 4 m
     Zoom: 1.5× to 12.0× (8×)
     Field of view (H × V), Degrees/M @100 M: 18.0° × 13.6° / 31.7 m × 23.8 m
     Image display: 800 × 600 monitor, 0.32-inch, OLED
     Image mode: Black hot, white hot, red hot, fusion
     FFC (Image Cleanup) Mode: Auto, Manual, External Correction
     exit pupil: 20 mm
     Eye relief: 6mm
     Diopter (Range): -5D to +4D
     Brightness adjustment: Yes
     Tone adjustment: Cold, Warm
     Contrast adjustment: Yes

System

     Video recording: Yes
     Photo recording: Yes
     Audio recording: Yes
     Sleep mode: Yes

Storage

     Integrated EMMC (8GB): PIP Yes
     Wi-Fi (streaming): Yes
     Hottest Spot Tracking: Yes
     Distance measurement: Yes

Food :

     Battery type: Rechargeable Lithium battery
     Battery Run Time: 8 hours of continuous operation with CVBS and Wi-Fi disabled (@25°C)
     6 hours of continuous operation with CVBS and Wi-Fi enabled (@25°C)
     Type-C power supply
     5 VDC, 2 A. Supports external power supply

General

     Protection index: IP67
     Dimensions: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
     Operating temperature: -20°C to 55°C (-4°F to 131°F)
     Weight: 260 g (0.57 lbs)
